Strainers
Pipeline protection from debris and particulates
Strainers
Overview
Strainers protect pumps, valves, meters and other equipment by capturing pipeline debris before it causes damage. Y-type, basket and T-type designs are available with a range of mesh sizes and easy clean-out for continuous, trouble-free operation.
Key Features
- Protects downstream equipment from debris

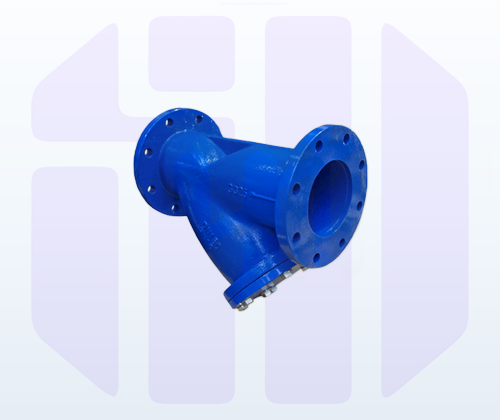

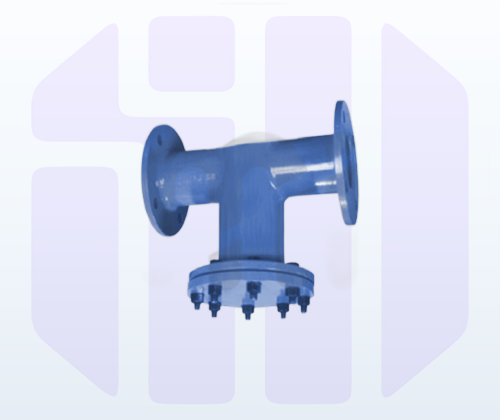

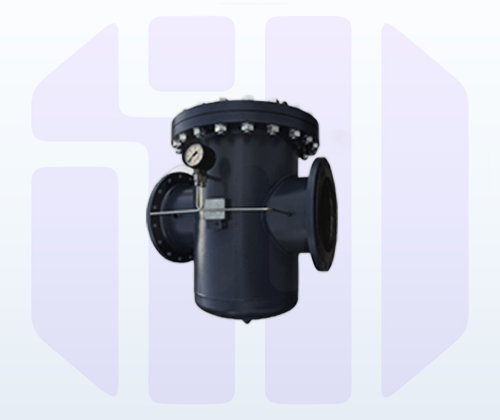

- Y, basket and T-type designs
- Range of perforation / mesh sizes
- Removable screen for easy cleaning
- Stainless steel screens for corrosion resistance
Applications
Pump protection Steam lines Oil & gas Water systems Chemical
Technical Data
| Size Range | 1/2" – 24" (DN15 – DN600) |
|---|---|
| Pressure Class | Class 150 – 800 / PN16 – PN100 |
| Body Materials | Cast iron, WCB, CF8 (SS304), CF8M (SS316), forged A105 |
| Trim / Internals | SS304 / SS316 perforated / mesh screen |
| End Connections | Flanged, Screwed, Socket-weld, Butt-weld |
| Operation | Not applicable (in-line) |
| Standards | ANSI B16.34 / manufacturer standard |
Full datasheet available on request
Types & Configurations
Available in the following designs — each can be tailored to your specification.
