Gate Valves
Full-bore isolation for on/off pipeline service
Gate Valves
Overview
Gate valves provide reliable, bidirectional isolation with minimal pressure drop when fully open. The wedge-shaped gate lifts clear of the flow path, making them ideal for on/off duty on liquids, gases and steam across a wide range of pressures and temperatures.
Key Features
- Full-bore design for minimal flow resistance
- Bidirectional tight shut-off
- Bolted-bonnet and pressure-seal constructions
- Renewable seat rings for easy maintenance
- Rising and non-rising stem options
Applications
Oil & gas Refineries Power plants Water & steam lines Petrochemical
Technical Data
| Size Range | 2" – 24" (DN50 – DN600) |
|---|---|
| Pressure Class | Class 150 – 2500 / PN16 – PN450 |
| Body Materials | WCB, WC6, LCB, CF8 (SS304), CF8M (SS316), forged A105 / F11 / F22 / F304 / F316 |
| Trim / Internals | 13% Cr, Stellited, SS304 / SS316 |
| End Connections | Flanged, Butt-weld, Socket-weld, Screwed |
| Operation | Handwheel, Gear, Bevel gear, Electric / Pneumatic actuator |
| Standards | API 600 / API 6D / BS 1414 / ANSI B16.34, IBR approved |
Full datasheet available on request
Types & Configurations

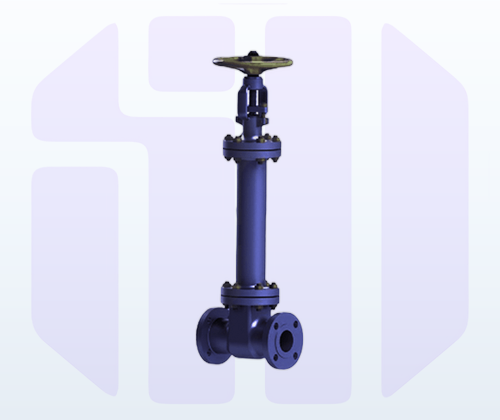

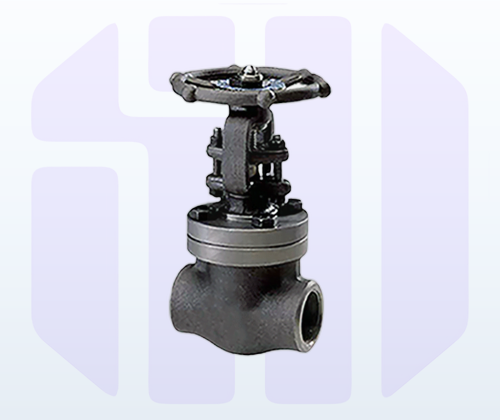

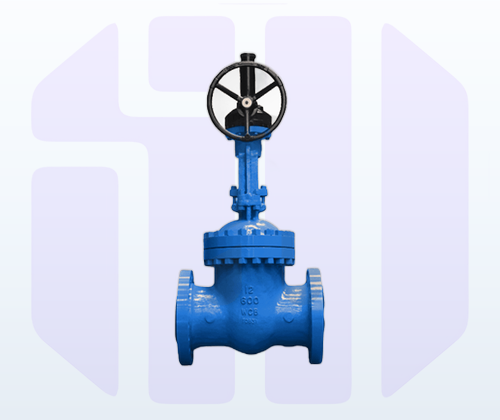

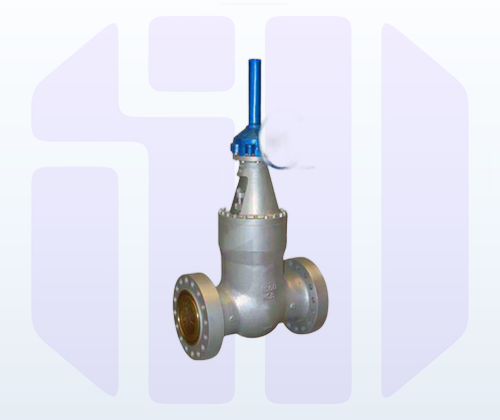

Available in the following designs — each can be tailored to your specification.
